AB/AD/AHB Series of
Termination Panels

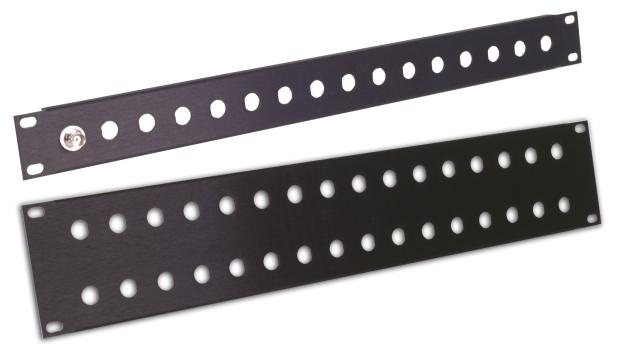

1/16” aluminum panels, flanged, line grained and
black anodized finish. ADE9P-1 has 16 cutouts for DB-9 connectors. AHBNP
panels are hinged and feature holes for multiples of 16 BNC connectors
with a 4” lacing bar |
![](images/AB,AD,AHB.JPG) |
|
|
|
|
|
|
|
P/N |
RU |
HEIGHT (in) x 19 |
CONNECTOR TYPES |
ABNP-1 |
1RU |
1.75 |
16 0.470 x 0.500 "D" |
ABNP-2 |
2RU |
3.50 |
32 0.470 x 0.500 "D" |
AHBNP-1 |
1RU |
1.75 |
16 0.470 x 0.500 "D" |
AHBNP-2 |
2RU |
3.50 |
32 0.470 x 0.500 "D" |
ADE9P-1 |
1RU |
1.75 |
16 DB-9 |
|
|
|
|
|
|
|
|
AX Series - AX4NP-2

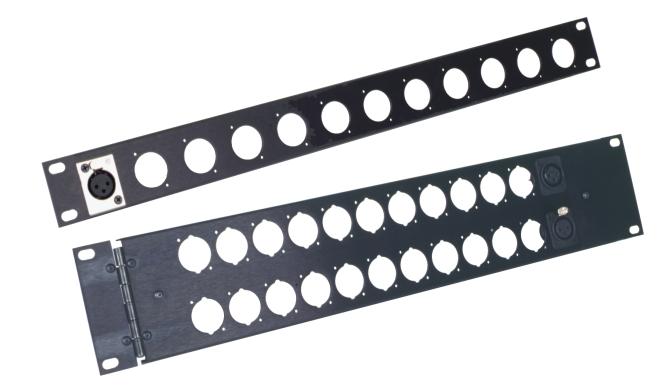

XLR Termination Panels 1/16”
aluminum panels, flanged for strength, line grained and black anodized,
4-40 tapped holes, 4-40 x 3/8” flat head Phillips screws included.
Hinged panels (AHX Series) feature a 4” lacing bar (XLR mounting
hardware included.)
|
![](images/AX.JPG) |
|
|
|
|
|
|
|
P/N |
HEIGHT (in) RU x 19 |
CONNECTOR TYPES |
AX2NP-1 |
1RU 1.75 |
8 "D" series XLR M/F |
AX3NP-1 |
1RU 1.75 |
12 "D" series XLR M/F |
AX4NP-1 |
1RU 1.75 |
16 "D" series XLR M/F |
AX2FP-1 |
1RU 1.75 |
8 "P" series XLR F |
AX3FP-1 |
1RU 1.75 |
12 "P" series XLR F |
AX4FP-1 |
1RU 1.75 |
16 "P" series XLR F |
AX2MP-1 |
1RU 1.75 |
8 "P" series XLR M |
AX3MP-1 |
1RU 1.75 |
12 "P" series XLR M |
AX4MP-1 |
1RU 1.75 |
16 "P" series XLR M |
AX4NP-2 |
2RU 3.50 |
16 (2x8) "D" series XLR M/F |
AXNP-2 |
2RU 3.50 |
32 "D" series XLR M/F |
AXFP-2 |
2RU 3.50 |
32 "P" series XLR F |
PNB* |
Blank Plate |
"D" series Blank |
PBB* |
BNC Plate |
"D" series BNC |
PRB* |
RCA Plate |
"D" series RCA |
PDE* |
DB-9 Plate |
"D" series DB-9 |
PRJ* |
RJ-45 Plase |
"D" series RJ-45 |
|
|
|
HINGED PANELS |
|
|
P/N |
HEIGHT (in) RU x 19 in L |
CONNECTOR TYPES |
AHXNP-1 |
1RU (1.75) |
"D" series Neutrik XLR M/F x 12 |
AHXNP-2 |
2RU (3.50) |
"D" series Neutrik XLR M/F x 24 |
Individual plates give the ability to mount other types of
connectors on the XLR panels |
|
|
|
|
|
|
|
|
|
|
|
|
AX Series - AX3NP-2

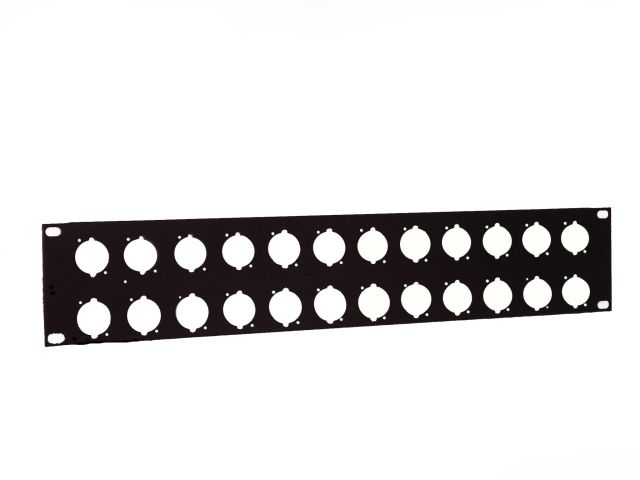

AX3NP-2 is a 2RU XLR Panel with 24 XLR holes (2x12). It is made from
1/16” aluminum, flanged for strength, line grained and black anodized.
The panel comes with 4-40 threaded holes as well as 4-40 x 3/8” long
Phillips flat head screws. |
![](images/AX3NP-2.JPG) |
|
|
|
|
|
|
|
|
|
ALB Series Lacing
Bars

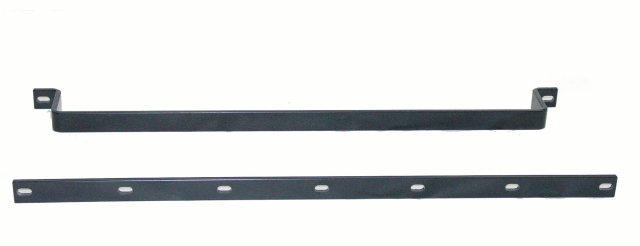

ALB series of lacing bars are
manufactured from 3/16” thick aluminum and are powder coated with black
semi-gloss finish. The ALB series of lacing bars are sold in packages of
5 and are 3/4” wide x 19” long |
![](images/ALB.jpg) |
|
|
|
|
|
|
|
|
|
P/N |
DESCRIPTION |
ALB |
Flat aluminum lacing bar |
ALB2 |
2" offset aluminum lacing bar |
ALB4 |
4" offset aluminum lacing bar |
|
|
