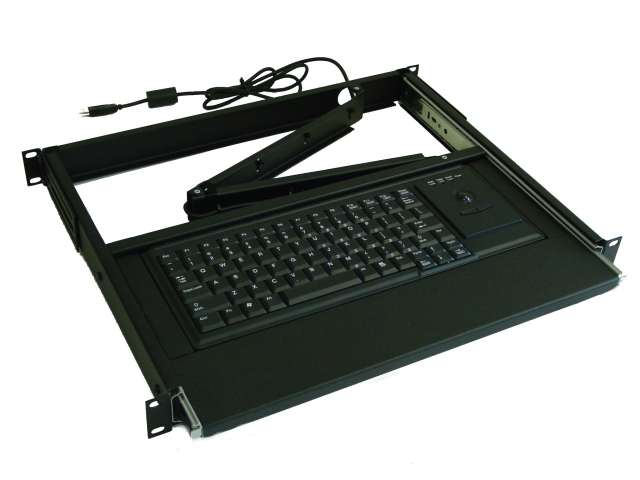

SKBD-1 KEYBOARD DRAWER

SKBD-1 is a 1RU (1.75 high) rack mount keyboard drawer.  It comes with a very high quality 82 key keyboard with an integrated track ball and a two button mouse.  The keys have a rubber blanket membrane technology and the interface on the keyboard is a single USB and is 10 feet long.  The life cycle on the keys is 5 million strokes.  The keyboard has a cable management that prevents the cables from being pinched.  The product has a durable textured black powder coat finish and is rear supported using rear brackets.

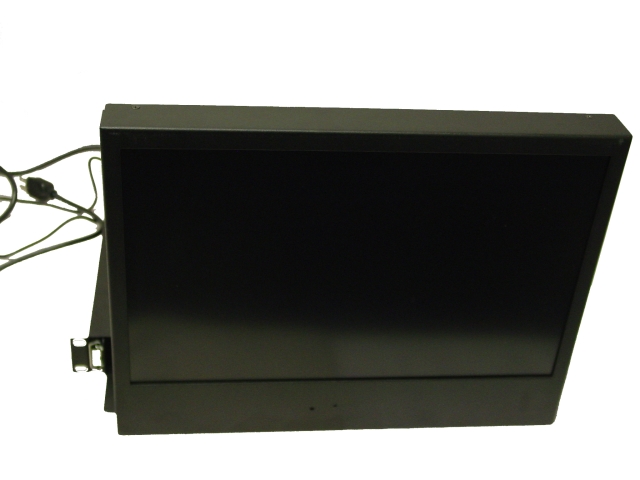

17" LCD DRAWER -  SLCD17-1

SLCD17-1 is a 1RU LCD drawer.  It has a 17 LCD with 1280 x 768 resolution and 250 NIT brightness, and it is rear mounted using rear support brackets.  It pulls out of the rack by approximately 10, opens up, and when closed it stays outside of the rack mounted front area by approximately 1 .  This allows the LCD to play the material while other equipment installed inside the rack are behind it and occupies only 1RU.  The signal inputs are VGA, S VIDEO, NTSC and PAL.  The drawer is finished in durable texture powder coat finish.
